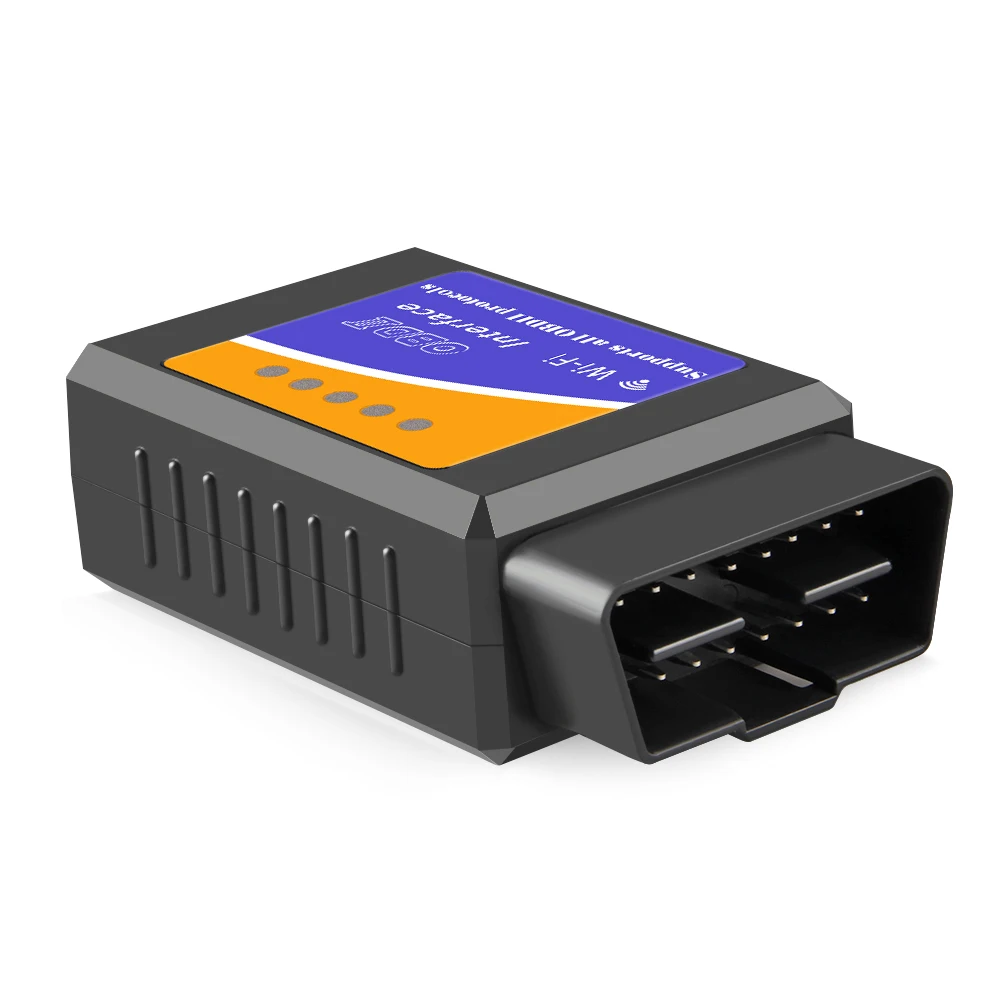

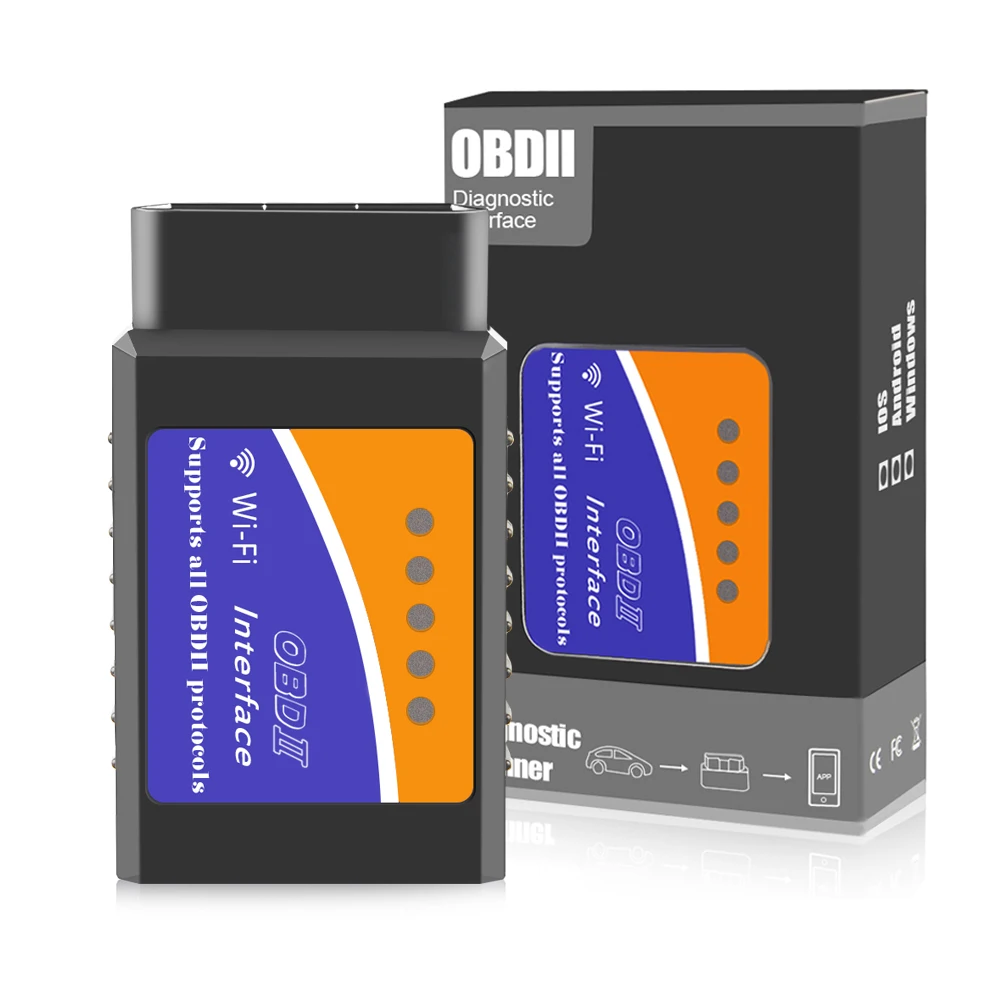

ELM327 Wifi V1.5 PIC18F25K80 Chip Code Reader ELM 327 OBD 2 Auto Scanner for IOS Android ELM 327 V1.5 WI-FI ODB2 Diagnostic Tool
Support obd2 car models :
American (USA) car:Compatible with Standard OBD2 Cars from 1996 to Now: For Chrysler, for Ford, for GM, for Jeep European car: Compatible with Standard OBD2 Cars from 2003 to Now: For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar France Car after 2006: for Citroen，for Fiat，for Renault，for Peugeot Not Support for Renault Clio 2/Megane/Dacia Logan, Asian car Compatible with Standard OBD2 Cars from 2007 to Now: for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota Chinese car: Compatible with Standard OBD2 Cars from 2009 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry
Not Support Russian Cars VAZ,UAZ,LADA ; Not works with trucks For Ssangyong Actyon , from 2009 to 2017 years. For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years. For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years. For Ssangyong Rexton , 2011 to 2017 years, Not Support Opel Corsa c 2004 1.3 CDTI Nor Support vw golf 4 2002 Not support Citroen C4/C5 . Not support Chevrolet cars , Not support Renault Logon/ megane Not support skoda fabia .Skoda OCTAVIA .
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,don’t have Special Functions,Like ABS Reset,Airbag Reset… Please Leave us message in below format, we will reply you within 8 hours. for example : xx, 2005, 2.0cc, Diesel
FAQ Before Orders (Please kindly read before)
Q1: What is the Versioni of this ELM327 WIFI ?A1: It’s 100% v1.5 from both software and hardware, with full OBD2 Protocols, including commands ATAL and ATTPS commands.

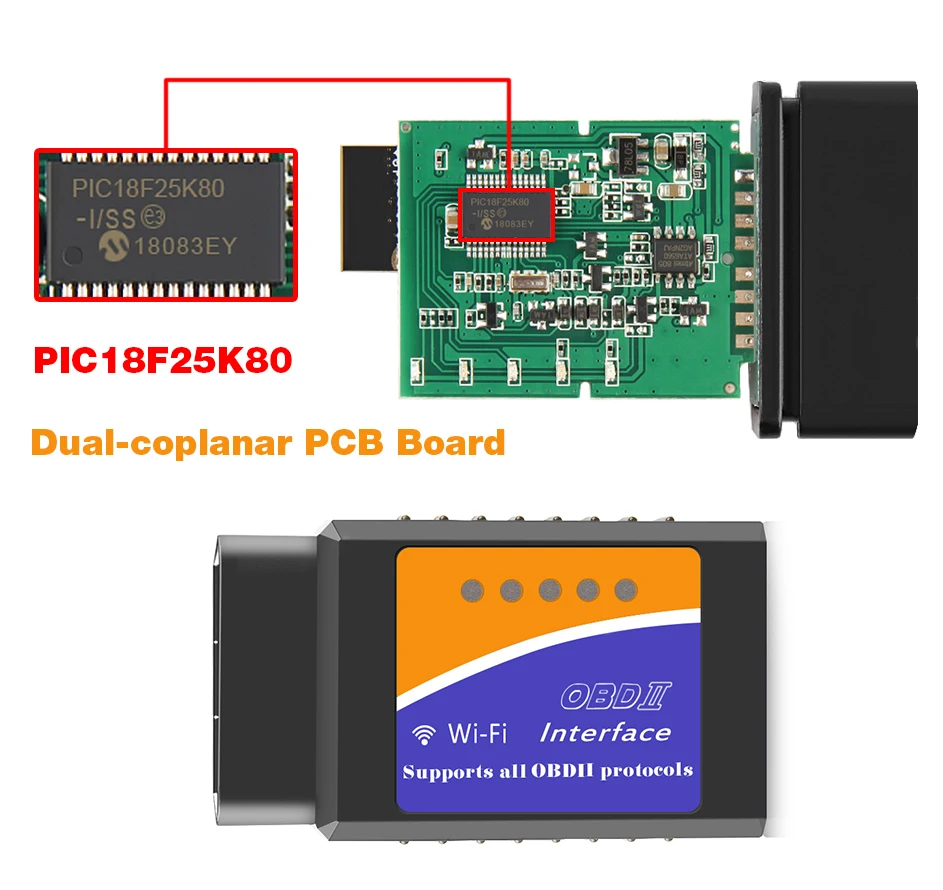

Q2: What is the Chip set of this ELM327 WIFI ?A2: It’s using the high performance pic18f25k80 chip set, 4mhz crystal oscillator.

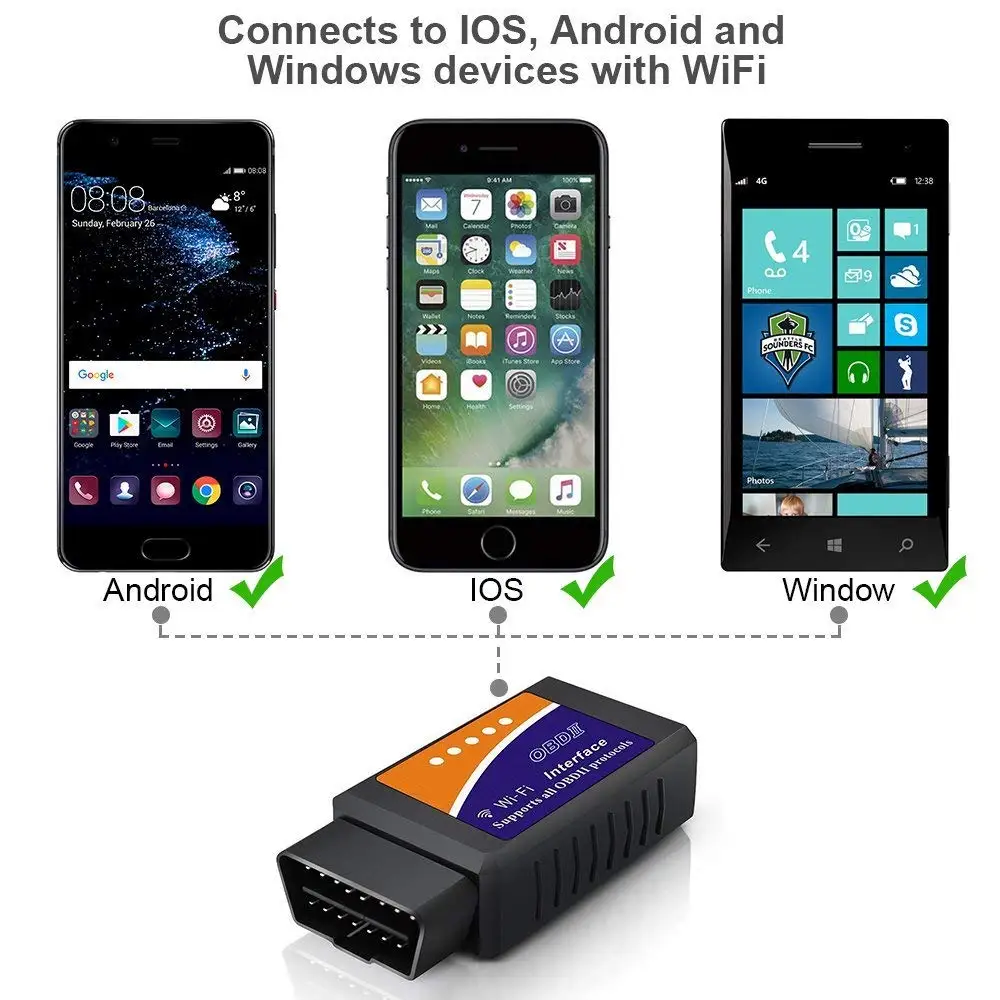

Q3: Does it work with IOS or iPhone or only for Android ?A3: Our ELM327 WIFI is working with iPhone, IOS and Android, Windows. All are compatible.
Q4: Does it work can diagnose all the fault code from my car?A4: the ELM327 can only work on vehicle’s engine system, it can read fault code from engine only. Not work with ABS, airbag, or transmission etc., fault codes.
• Wireless scanning for tool, support all OBD2 protocols • Compatible with most OBD II compliant vehicles • 3000 code definition database • Read diagnostic trouble codes • 16-pin socket adaptor for wifi interface • Built-in indicator lights
Display and read:
• Engine RPMs • Calculated load value • Coolant temperature • Fuel system status • Vehicle speed • Short-term fuel trim • Long-term fuel trim • Intake manifold pressure • Timing advance • Intake air temperature • Air flow rate • Absolute throttle position • Oxygen sensor voltages • Associated short term fuel trims • Fuel system status • Fuel pressure

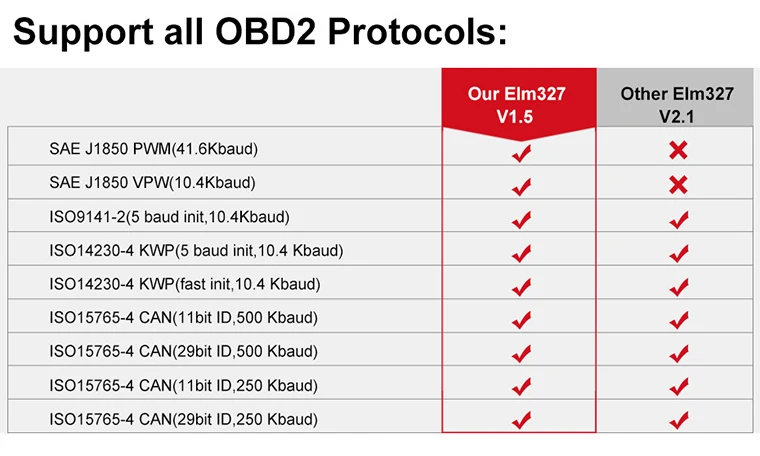

EML327 wifi Support Protocols :
1.SAE J1850 PWM(41.6Kbaud) 2.SAE J1850 VPW(10.4Kbaud) 3.ISO9141-2(5 baud init,10.4Kbaud) 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 5.ISO14230-4 KWP(fast init,10.4 Kbaud) 6.ISO15765-4 CAN(11bit ID,500 Kbaud) 7.ISO15765-4 CAN(29bit ID,500 Kbaud) 8.ISO15765-4 CAN(11bit ID,250 Kbaud) 9.ISO15765-4 CAN(29bit ID,250 Kbaud) A.SAE J1939 CAN(29bit ID,250*Kbaud) B.USER1 CAN(11*bit ID,125*Kbaud) C.USER2 CAN(11*bit ID,50*kbaud) *default settings(user adjustable)
• Model name: ELM327 OBD2 WIFI V1.5 • Type: Code readers; scanning tools • Output protocol: Bluetooth • Color: Black & white • Materials: Plastic • Voltage: 12 V • Current: 45 mA • Wave frequency: 38400 Hz • Applicable scope: 5 to 10 m (16.4 to 32.8 ft.) • Item size: 4.8 x 2.5 x 3.5 cm (1.89 x 0.98 x x1.37 in) • Item weight: 23 g (0.81 oz.) • Package size: 8.8 x 8.8 x 4 cm (3.4 x 3.4 x 1.5 in) • Package weight: 48 g (1.69 oz.)

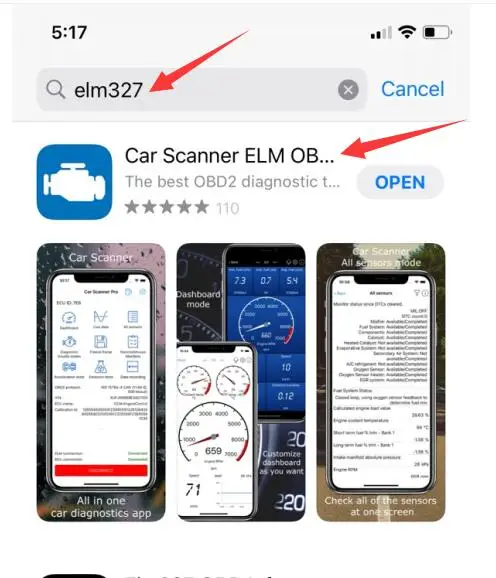

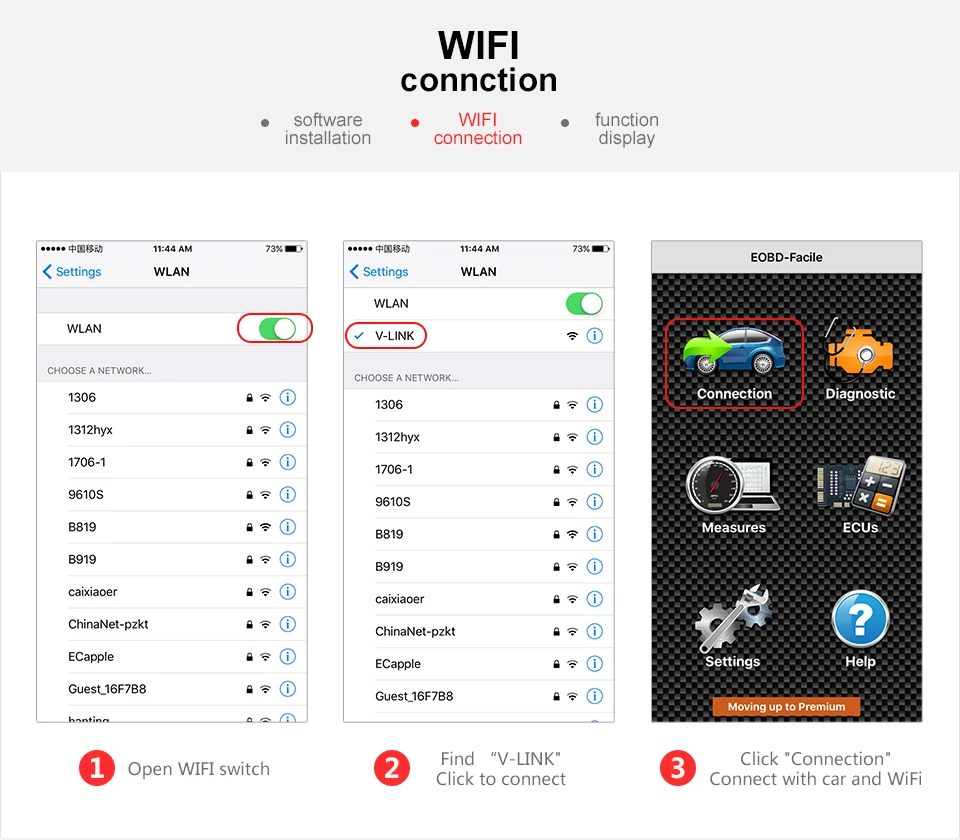

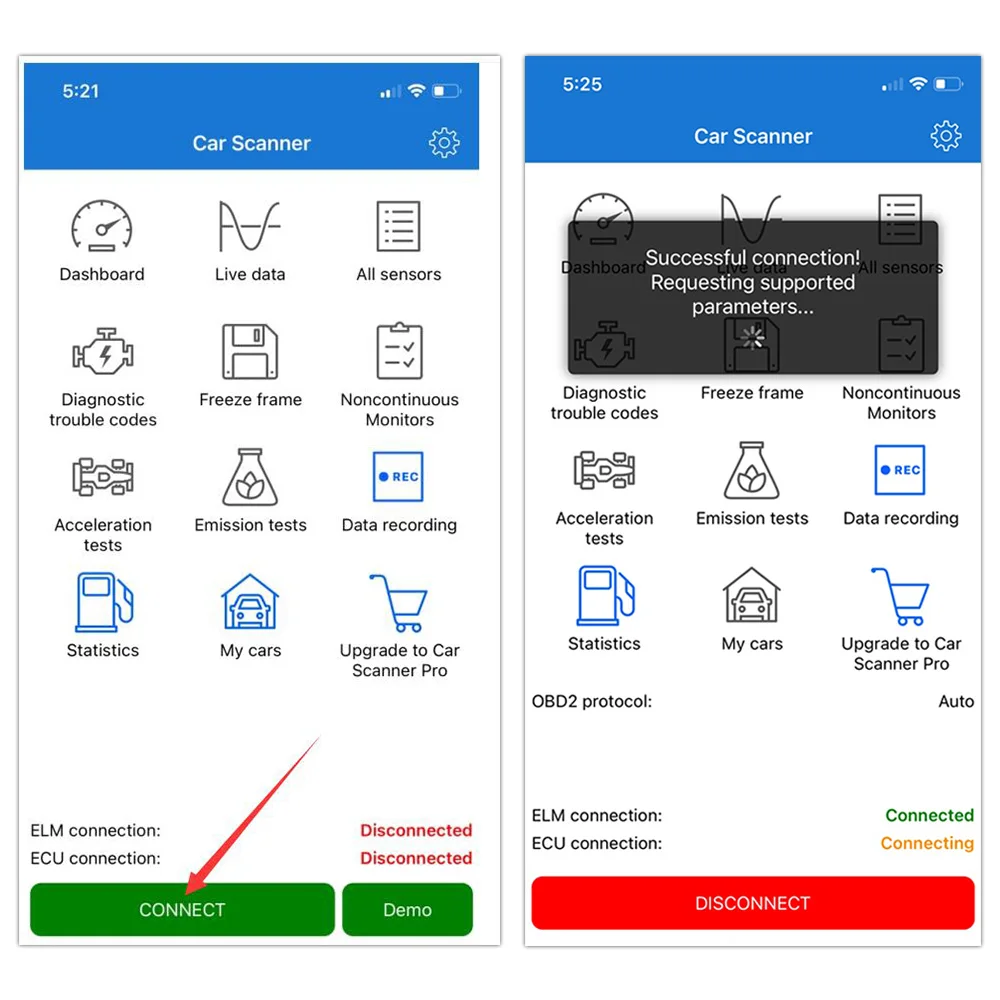

For Iphone connection:

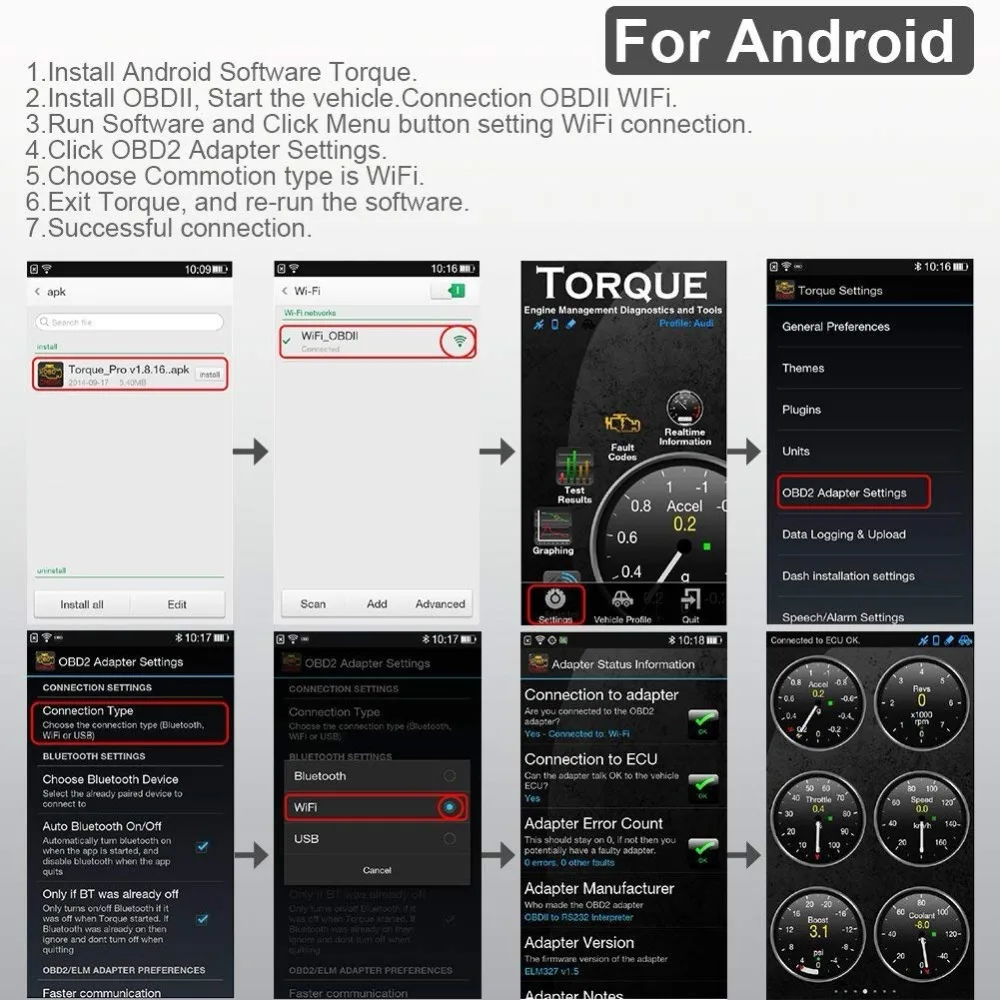

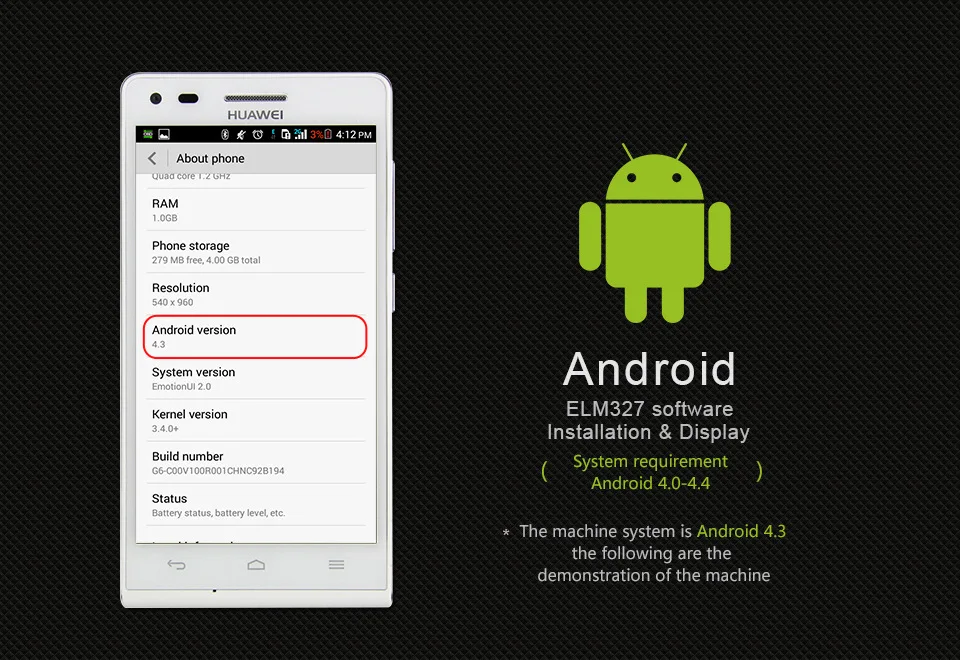

For android phone connection:
1* ELM 327 WIFIV1.5 Autoscanner Safe packing for all Obdgear Packages
