KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

Shipping Time: Shipping cost:
Quantity:
In Stock
Free shipping worldwide
60 Day Returns
View Cart
Guaranteed safe checkout
Product Details
Shipping & Payment
Product Details



Please watch the video for the different connection methods of iPhone and Android




KUULAA ELM327 V1.5 Bluetooth 4.0 ELM 327 OBD2 Scanner Diagnostic Adapter Scan Tool OBD OBDII Code Reader For iOS Android Windows

ELM327 V1.5 BT4.0 is mainly used to read the data of car engine and emissions, diagnostic car engine trouble, and erase trouble codes. It is small size, highest chip integration, Passed CE, FCC, and RoHS certification.

ELM327 V1.5 BT4.0 Functions: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). Clear the error codes and turn off the MIL (“Check Engine” indicator) Displays current sensor data, including: Engine speed per minute (RPM) Calculated load value Coolant temperature Fuel system status Vehicle speed Short-term fuel condition Long-term fuel condition Intake manifold pressure Injection advance time Intake air temperature Air Flow Rate Absolute throttle position Oxygen probe voltage associated with short-term fuel status Fuel system status Fuel pressure There are many other data available for fuel consumption monitoring … Software Platforms. 1. Compatible software Window versions: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc. Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc. Symbian version: OBDScope. 2. 2. Compatible Platforms Software support platform: Windows XP, Windows 7/8/10, Android, Symbian, etc.

Support Protocol:

SAE J1850 PWM (41.6 Kbaud) SAE J1850 VPD (10.4 Kbaud) ISO 9141-2(5 baud init,10.4 Kbaud) ISO 14230-4 KWP ( 5 baud init,10.4 Kbaud) ISO 14230-4 KWP (fast init,10.4 Kbaud) ISO 15765-4 CAN (11bit ID,500 Kbaud) ISO 15765-4 CAN (29bit ID,500 Kbaud) ISO 15765-4 CAN (11bit ID,250 Kbaud) ISO 15765-4 CAN (29bit ID,250 Kbaud)

Bluetooth 4.0 OBDII Car Diagnostic Scanner

Diagnose Engine Trouble Code Clear Engine Trouble Code Car Information Reading Work After Connect Car Supports Almost Kinds Of Cars Small & Convenient

Product Function

Dashboard Live Date All Sensors Diagnostic Trouble Codes Freeze Frame Noncontinuous Monitors Acceleration Tests Emission Tests Data Recording

Are you experiencing these problems?

New driver 4s shops are expensive to maintain Check for breakdowns before traveling

Read/Clear error diagnostic code

Engine Electric Bodywork Chassis

Diagnosis vehicle health

Real-time monitor vehicle ,display the diagnostic values of various vehicle.(Database has more than 3000 code definitions) Read error diagnostic code Clear error code Display engine revolutions Coolant temperature Fuel system status Short-term fuel condition Fuel pressure Long-term fuel situation Intake manifold pressure Fuel injection advance time Air temperature Air velocity Fuel system status Fuel consumption monitoring etc.

Detect fuel consumption and mileage

Real-time display of vehicle fuel quantity, vehicle speed, rotation speed, mileage, temperature, air pressure and other data, master all vehicle data

Bluetooth-mobile phone connection

Support ios/Android/Windows…turn on the bluetooth of mobile phone, search for OBDII and use it *Download APP is required

Link location of OBD interface

Most of the connectors are under the dashboard.(Check the vehicle manual, if don’t find.) Area A: VW、 Ford、Toyota、Hyundai、 Citroen、 BMW、etc./Most cars. Area B: Honda, Lexus,etc. Area C: Dongfeng Citroen,etc. Area D/E : A few cars…

Connection steps

1 Install APP : Scan the QR-code on product instruction,and download “APP”.(Download method read the manual:iOS users recommend using “Car Scanner” or “OBD Car Doctor” Android users recommend using”Torque” or “OBD Car Doctor”You can also search for the software name in Google Play or Apple Store to download.)

2 Plug In Adapter: Plug adapter into OBDII port of car,power light flashes. 3 Pair Bluetooth: Connect the product with Bluetooth or WiFi,open the downloaded app,and set the connection method and device.(please refer to the manual for detailed operation) 4 Connect Automatically: When using the product again, after plugging in the car’s standard OBDII interface,start car,open the app,it will connect automatically,no need to verify again.

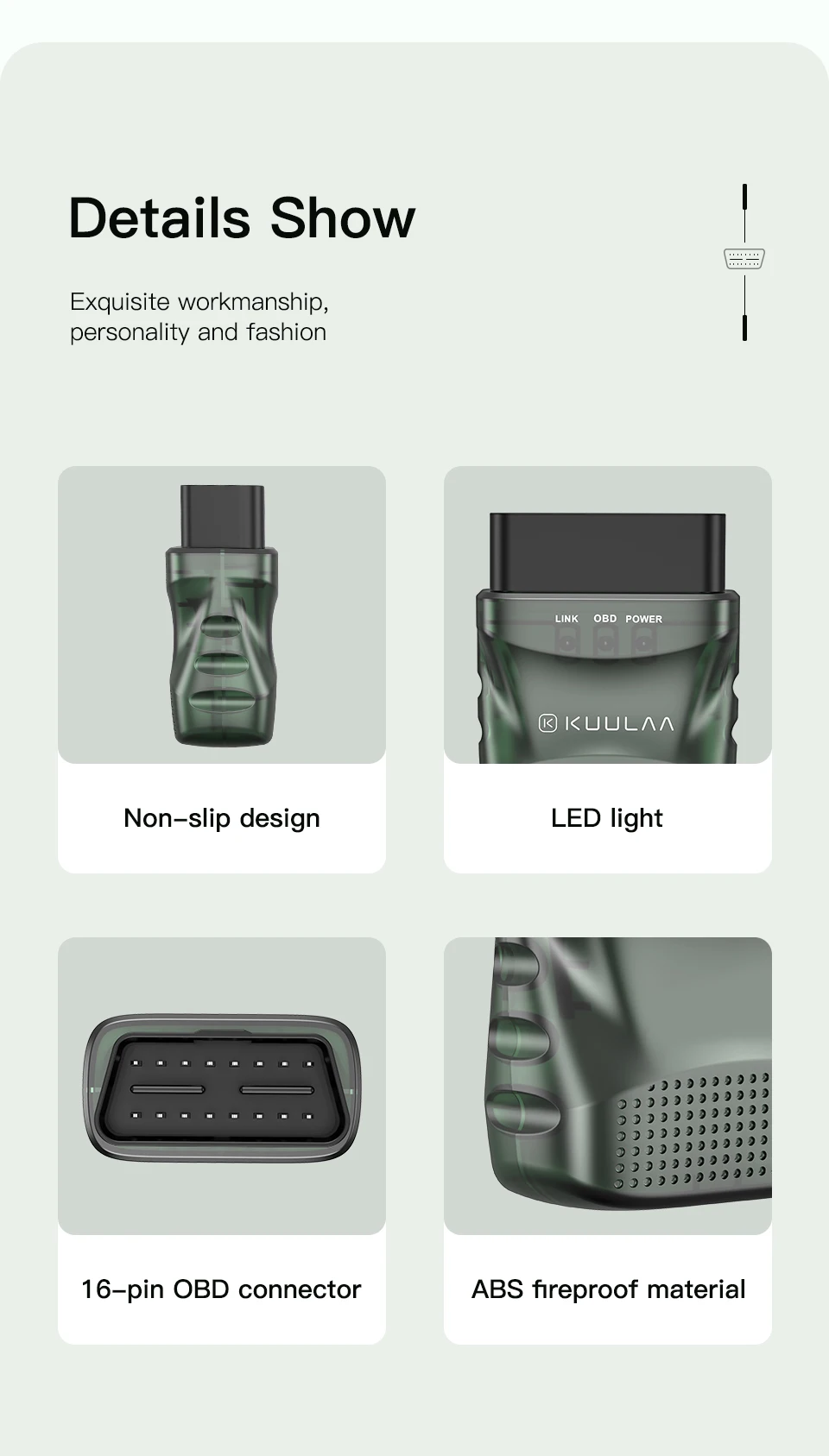

Details Show

Exquisite workmanship, personality and fashion Non-slip design Bottom LED light 16-pin OBD connector ABS fireproof material

Product parameters

Brand:KUULAA Name:Bluebooth OBDII Car Diagnostic Scanner Model:KL-DW006 Bluetooth version:4.0 Working voltage:12V Working current:32mA Operating temperature:-40~80℃ Storage temperature:-30~80℃ Main chip: mm32l073 Software platform:support Android/Windows/IOS…

Product weight:24g Product size:57*24.2*46.2mm Color:Black-green Package Included:1x Auto Scanner

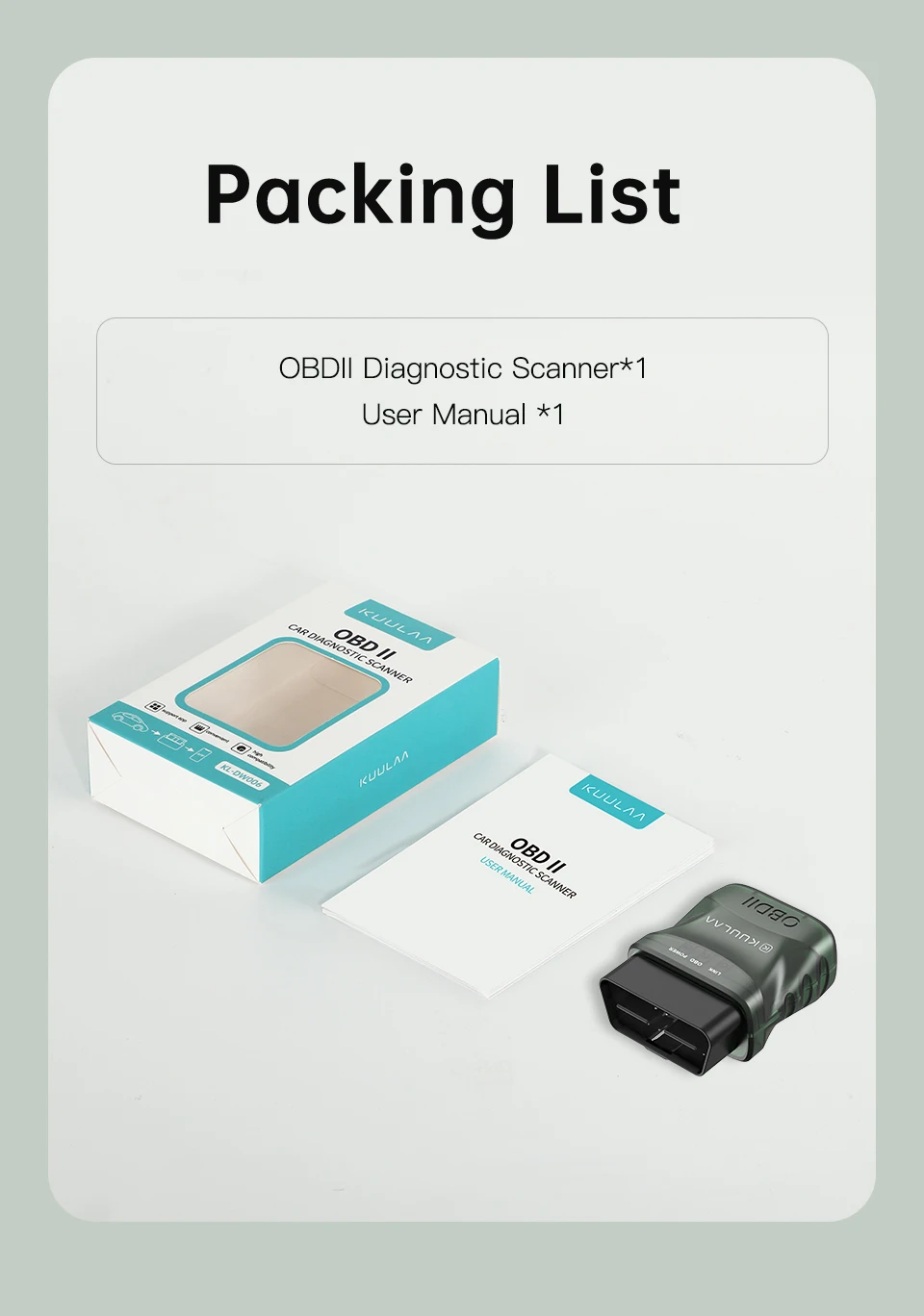

Packing List

OBDII Diagnostic Scanner *1 User Manual*1
