OBDLink LX MX+ OBD2 Scanner ELM327 Diagnostic Scan Tool for iPhone, iPad, Android, Kindle Fire or Windows Device

Shipping Time: Shipping cost:
In Stock
Free shipping worldwide
60 Day Returns
View Cart
Guaranteed safe checkout
Product Details
Shipping & Payment
Product Details

OBDLink Official Store___Genuine products ___3 years Warranty

All OBDLink products are designed in the U.S.A by OBDLink

Feature Highlights

• Fully compatible with the ELM327 AT command set • Feature-rich parallel extended ST command set • UART baud rates from 38 bps to 10 Mbps(1) • Large (up to 4KB) data transfers(2) • Safe, secure bootloader for easy firmware updates • Support for all legislated OBD-II protocols: o ISO 15765 (CAN) o ISO 14230 (Keyword Protocol 2000, KWP2K) o ISO 9141 (Asian, European, Chrysler vehicles) o SAE J1850 VPW (GM vehicles) o SAE J1850 PWM (Ford vehicles) o SAE J1939 (Heavy Duty vehicles)

• Support for non-legislated protocols (not available in OBDLink LX): o ISO 11898 (raw CAN) o SAE J2818 o SAE J2411 (GMW3089, Single Wire CAN, GMLAN) o Ford MS-CAN (Medium Speed CAN) • Superior automatic protocol detection algorithm • Large memory buffer • Voltage input for battery monitoring • PowerSave mode with multiple sleep and wakeup triggers Note 1: Maximum theoretical baud rate. Actual maximum baud rate is application dependent and may be limited by driver hardware. Note 2: Only available on specific OBDLink devices. See STPX for details.


OBDLink is an easy-to-use, inexpensive, hacker-proof, lightning-fast Bluetooth OBD adapter that can turn your smart phone, tablet, laptop, or netbook into a sophisticated diagnostic scan tool, trip computer, and real-time performance monitor.

The ergonomically designed, small form factor device comes in frustration-free packaging, and takes an average of 3 minutes to install. The button on the back of the unit makes the connection process both easy and secure: unlike most other adapters on the market,OBDLink neither broadcasts its presence, nor uses an easy-to-guess PIN to protect the communication link. A potential hacker would require physical access to the device, in order to connect to it.

Free Exclusive OBDWiz and OBDLink App, included ,allows you to:

Turn off the check engine light, and erase stored diagnostic information

Read and erase stored and pending trouble codes (both generic and manufacturer-specific) Access freeze frame information Display, graph, and log 90+ real-time parameters Create custom digital dashboards Measure and display fuel economy And much more!


While all OBDLink tools include a capable diagnostic app, many third-party apps are available that can greatly expand the utility of the tool. Each app has its own unique set of features and capabilities.

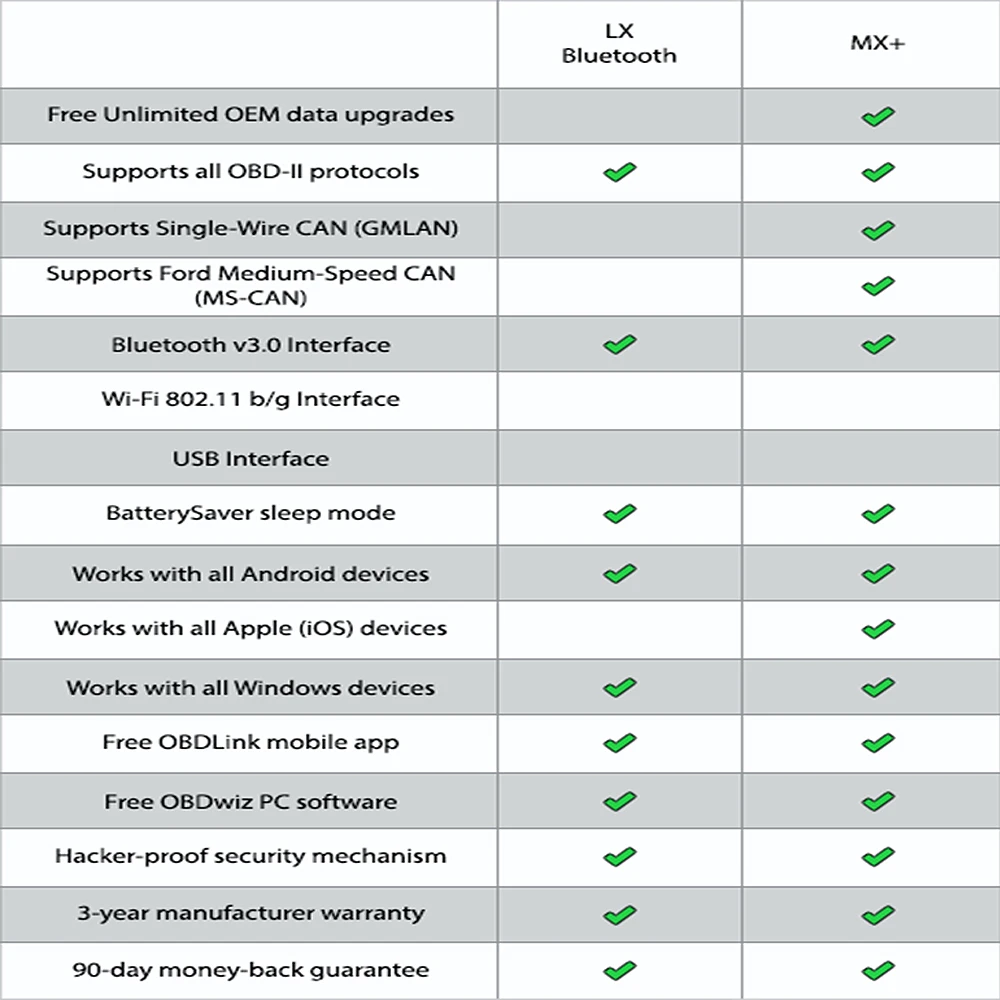

Note: Not all OBDLink scan tools are compatible with all apps, and only OBDLink MX+ currently supports iOS.


MX+ Supports: Free Unlimited OEM date upgrades GMLAN,MS-CAN iOS devices

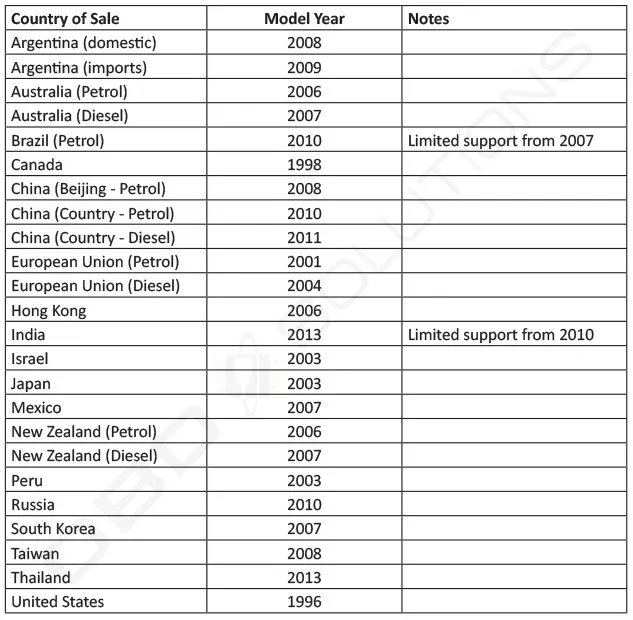

OBDLink MX+ works with all 1996 & newer model year cars and light trucks sold in the U.S., including all American, European, and Asian vehicles. Live outside the U.S.? Most newer non-U.S. vehicles are compliant with the OBD-II standards.

Check here to verify that MX+ will work with your non-U.S. vehicle.
Shipping & Payment

Shipping and delivery

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
Asia 10-20 Business days
Africa 15-45 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

Refunds & returns policy

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.


Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:

  • If you did not receive the product within the guaranteed time( 45 days not including 2-5 day processing) you can request a refund or a reshipment.
  • If you received the wrong item you can request a refund or a reshipment.
  • If you do not want the product you’ve received you may request a refund but you must return the item at your expense and the item must be unused.

We do not issue the refund if:

  • Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
  • Your order did not arrive due to exceptional circumstances outside the control of citycarpart.com (i.e. not cleared by customs, delayed by a natural disaster).
  • Other exceptional circumstances outside the control of

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.


If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.
