OCEAN 2PCB PIC18F25K80 Firmware 1.5 ELM327 V1.5 OBD2 Bluetooth Diagnostic Interface ELM 327 V1.5 Hardware Support More Car

Shipping Time: Shipping cost:
Quantity:
In Stock
Free shipping worldwide
60 Day Returns
View Cart
Guaranteed safe checkout
Product Details
Shipping & Payment
Product Details

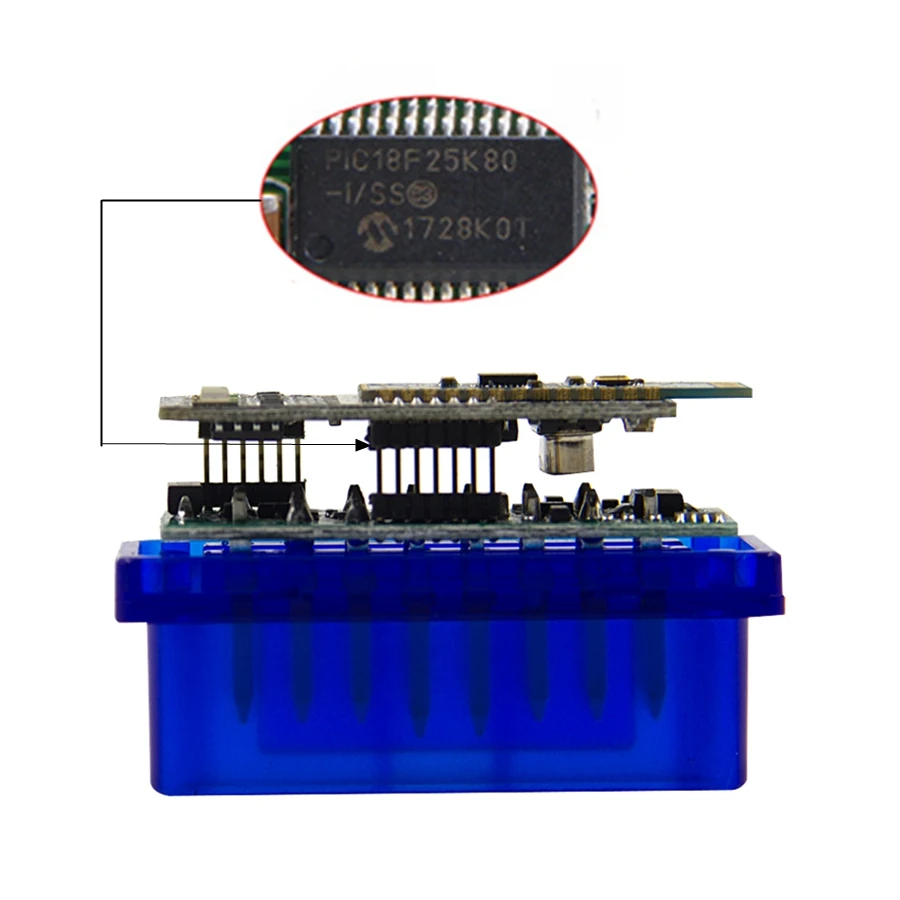

ELM327 V1.5 Specifications: Operating voltage: 12V, internal protection from short circuits/overvoltages Nominal idle current: 45mA Item Size: 3.2 * 4.7 * 2.3cm Item Weight: 22g Package Weight: 45g 1. ELM327 V1.5 Bluetooth Supprots All OBD2 Protocols: 1. ISO9141-2(5 baud init,10.4Kbaud) 2. ISO14230-4 KWP(5 baud init,10.4 Kbaud) 3. ISO14230-4 KWP(fast init,10.4 Kbaud) 4. ISO15765-4 CAN(11bit ID,500 Kbaud) 5. ISO15765-4 CAN(29bit ID,500 Kbaud) 6. ISO15765-4 CAN(11bit ID,250 Kbaud) 7. ISO15765-4 CAN(29bit ID,250 Kbaud) SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) 2.Top Reasons To Choose The ELM327 V1.5: This is V1.5 version bluetooth elm 327 and it is PICI8F25K80 Chip. It supports MORE cars and mcuh better quality than V2.1 elm 327. If your V2.1 elm 327 can not read your car ECU,so you need to order V1.5 version elm 327 to try,but it does NOT mean it 100% work on your car as we can not test each car.The truth is that with 25K80 chip V1.5 version elm 327 supports MORE cars! 1. It is the smallest size elm327 bluetooth. 2. It is the latest software version V2.1, best hardware version V1.5 3. With PIC18F25K80 Chip (100% Real Chip) . 4. It works on Android / Symbian / PC (Windows). 5. It supports All OBD2 Car Protocols, fits in more cars than V2.1 It supports 12 kinds languages: Czech,Danish,German,English,Spanish, French,Croatia, Hungary, Italy,Poland,Serbia and Turkey. 3. ELM327 V1.5 Bluetooth Functions : 1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2. Clear trouble codes and turn off the MIL (”Check Engine” light). 3. Display current sensor data. 4. Engine RPM. 5. Calculated Load Value. 6. Coolant Temperature. 7. Fuel System Status. 8. Vehicle Speed. 9. Short Term Fuel Trim. 10. Long Term Fuel Trim. 11. Intake Manifold Pressure. 12. Timing Advance. 13. Intake Air Temperature. 14. Air Flow Rate. 15. Absolute Throttle Position. 16. Oxygen sensor voltages/associated short term fuel trims. 17. Fuel System status. 18. Fuel Pressure. And many others… 4. ELM327 V1.5 Bluetooth Supports Vehicle List It works on OBD2 vehicles ,but it is impossible for us to test it on all kinds cars. we are not sure whether it can comply with your cars. If you have not used the product before ,you could have a try. If you dont wanna a try, please think twice before buying. Thank you for your understanding in advance. Package Including: 1pc x ELM327 Bluetooth obd scan tool interface 1pc x SW driver 5. Attention Please: 1. it only works with cars, doesnt support the truck. 2. Bluetooth password :1234 3. if the CD was broken, please contact us and we will provide you a download link or send you the sw through the email. 4. For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
